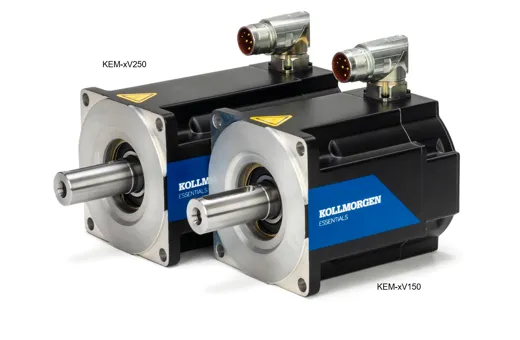

Kollmorgen Essentials KEM-2V250-KE9NCB - Basic Servomotor

Highest performance at competitive prices

DThe Kollmorgen Essentials motor combines proven servo motor technology with an optimised price-performance ratio. These basic servo motors offer all the essential functions for demanding industrial applications without any superfluous features – perfect for cost-efficient automation solutions.

Technical data

• Power: 2500W
• Nominal Voltage: 230VAC
• Single-cable solution with SFD-M encoder
• Encoder accuracy of ± 1 arc minute (typical) and 24-bit resolution
• Multi-turn with 65,536 revolutions
• Protection class IP54 with IP65 sealing kit
• With half and full key for adaptation with and without keyway in the same model

Performance data

Stall
	10.1Nm
	10.9A
Peak
	23.4Nm
	27.2A
	5000rpm
	240Vac
120Vdc*
	9.8Nm
	1000rpm
240Vac*
	8.6Nm
	3000rpm



*Nominal data with a reference aluminum flange of 305x305x12.7mm

Smart Feedback Device (SFD-M)

Integrated intelligent encoder with on-board memory enables plug-and-play parameterisation with Kollmorgen drives. The 24-bit resolution and 16-bit multi-turn tracking over 65,536 revolutions guarantee maximum positional accuracy.

Optimised windings

pecially developed windings for different voltage ranges (120/240/400/480 VAC) ensure maximum efficiency and power density in your application.

Robust construction

IP54 protection with IP65 sealing ring for reliable operation in industrial environments, with high-quality materials and workmanship for long service life and compact design for space-saving installation.

Easy integration

ompatible with all common Kollmorgen servo drives. The motors have standard flange dimensions for easy replacement of existing motors and are preconfigured with the SFD-M with all parameters for quick commissioning. The Essential Motor series is optimally matched to Kollmorgen Essential servo drives and also works with all other current Kollmorgen servo controllers (AKD, AKD2G).

Advantages at a glance

• ✓ Cost-effective - Optimal price-performance ratio without compromising on performance
• ✓ Plug-and-Play - Intelligent encoder with on-board memory for easy parameterisation
• ✓ Versatile - Various power classes and voltage ranges available
• ✓ Reliable - Proven Kollmorgen Quality in robuste industrial design
• ✓ future prove - Compatibale with modern control systems and communication protocolls

Certifications: CE, UKCA, UL
