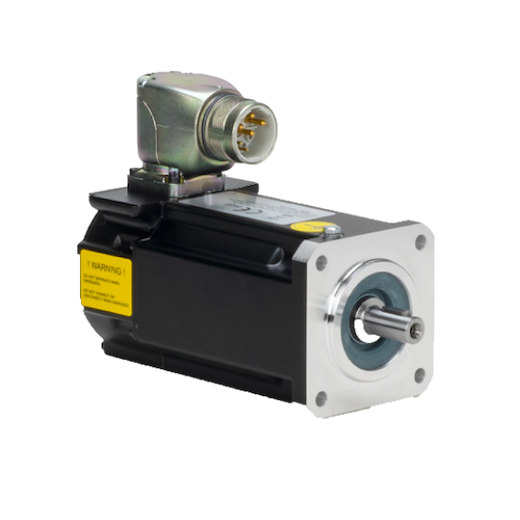

Kollmorgen AKME Hazardous Location Servo Motor:

AKME servo motors are built on the proven performance of the AKM servo motor platform, with additional design features to achieve ATEX and IECEx certification for operation in gas Zone 2 and dust Zone 22 hazardous locations.

• with brake
• Hiperface DSL - Absolute Multi-turn (without Func.Safety) encoder with accuracy of +/-4arcmin
• Absolute feedback with 4096 revs
• with Single 90° M23 Phoenix hybrid connector
• ATEX Standard motor with shaft seal IP67
• Temperature sensor PT1000
• Inertia 0.123kgcm²
• 3 Pole pairs / 6 Poles
• TPS 25 ATEX 124440 0005 X
• Gas, Zone 2: II 3G EX ec mc IIC T4 Gc
• Dust, Zone 22: II 3D EX tc IIIC T130°C Dc
• IECEx TPS 25.0065X

Performance data

Stall
	0.44Nm
	3.05A
Peak
	0.41Nm
	2000A
	0rpm
	120VAC
75Vdc*
	0.41Nm
	2000rpm
120Vac*
	0.38Nm
	5000rpm



*Nominal data with a reference aluminum flange of 254x254x6.35

Available variants

AKME21E-AC92GU01, with key: pilot=40mm, bolt circle=63mm, shaft=9mm
AKME21E-AN92GU01, smooth shaft: pilot=40mm, bolt circle=63mm, shaft=9mm
AKME21E-BN92GU01, smooth shaft: pilot=38.1mm, bolt circle=66.68mm, shaft=9.525mm
AKME21E-CK92GU01, keyway without key: pilot=50mm, bolt circle=70mm, shaft=14mm
AKME21E-DC92GU01, with key: pilot=40mm, bolt circle=65mm, shaft=9mm
AKME21E-DN92GU01, smooth shaft: pilot=40mm, bolt circle=65mm, shaft=9mm

Certifications: CE, UKCA, UL
