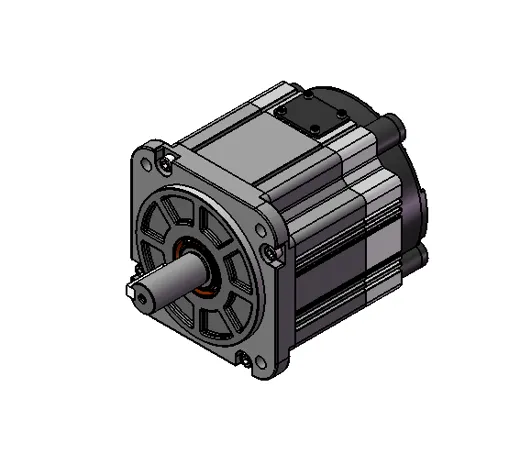

VEICHI RB300 Series Integrated Servo Drive Motor

Revolutionary All-in-One Motor Technology

The VEICHI RB300 series represents the next generation of integrated servo drive motors, combining cutting-edge engineering with practical innovation. This sophisticated system integrates low-voltage synchronous motors, high-precision encoders, and advanced servo drives into a single, compact unit. Powered by internationally recognized algorithms, the RB300 delivers exceptional performance, precision, and rapid response capabilities that meet the demanding requirements of modern industrial automation.

Key Features & Benefits

• Ultra-compact construction with 1500W models featuring only 151.2mm length
• Streamlined system design minimizes installation footprint
• Reduced wiring complexity with motor and drive in one

Technical Specifications

• 1500W nominal power
• 17-Bit Magnetic single-turn encoder
• Digital I/O: 3× optically isolated digital inputs, 1× optically isolated digital output
• With 16Nm holding brake
• Brake Control: DC 24V external power supply for brake release as option
• Inertia: 12.65kgcm²
• Equiped with KTY-Tempsensor
• Total weight of 6.4kg

Performance data

Nominal
	4.78Nm
	31A
	3000rpm
	48Vdc
Peak
	14.33Nm
	93A
	3000rpm

Superior Reliability

• Industrial-grade components with IP54 protection rating
• Reliable device connections and robust construction
• Designed for continuous operation in demanding industrial environments
• Enhanced durability through integrated design approach

Flexible Communication Options

• Communication protocols: CANOpen
• In-Out connection design for easy networking
• Simplified integration into existing automation systems
• Future-proof connectivity options

Easy Installation & Operation

• Simplified wiring requiring only power supply and communication connections
• No complex setup or configuration required
• Interactive LED indicators for comprehensive system status monitoring
• Reduced installation time and labor costs

Certifications: CE
