AKM42H-AN92CA00 Kollmorgen servo motor, 3.54Nm, 6000rpm, SFD3, with brake, flange option:
from CHF 1078.30 excl.
Kollmorgen AKM Permanent magnet synchronous servomotor with 3.54Nm rated torque and maximum 6000rpm, SFD3 Feedback and with brake
Available: Please select variant
Kollmorgen AKM Brushless PM servo motors:
Kollmorgen best-in-class, high-performance servomotors offer high torque density with low cogging. The wide range of mounting options suits almost any application requirement.
- with brake
- SFD3 encoder with accuracy of +/-9min
- with one M23 hybrid connector, SpeedTec Ready, angular, rotatable
- IP54 ,option for shaft seal ring (IP65) on request
- Temperature sensor PT1000
- Inertia 1.45kgcm²
- 5 Pole pairs / 10 Poles
Performance data
| Stall | |
| 3.54Nm | |
| 6A | Peak |
| 11.5Nm | |
| 24A | |
| 6000rpm | |
| 480Vac | |
| 160Vdc* | |
| 3.2Nm | |
| 2000rpm | 320Vdc* |
| 2.72Nm | |
| 4500rpm |
*Nominal data with a reference aluminum flange of 254x254x6.35mm
De-rating due to encoder and/or brake: 0.12Nm
Available variants
AKM42H-AC92CA00, with key: pilot=80mm, bolt circle=100mm, shaft=19mm
AKM42H-AN92CA00, without key: pilot=80mm, bolt circle=100mm, shaft=19mm
AKM42H-CC92CA00, with key: pilot=60mm, bolt circle=90mm, shaft=19mm
AKM42H-CN92CA00, without key: pilot=60mm, bolt circle=90mm, shaft=19mm
AKM42H-GC92CA00, with key: pilot=80mm, bolt circle=100mm, shaft=14mm
AKM42H-GN92CA00, without key: pilot=80mm, bolt circle=100mm, shaft=14mm
AKM42H-HC92CA00, with key: pilot=60mm, bolt circle=90mm, shaft=14mm
AKM42H-HN92CA00, without key: pilot=60mm, bolt circle=90mm, shaft=14mm
Certifications: CE, UKCA, UL
| Item no. | 3000-1500 |
| Manufacturer | Kollmorgen |
| Weight | 4.080 kg |
| Voltage | 230Vac |
| Application | Standard (AKM) |
| Velocity | 6000rpm |
| Feedback | SFD3 |
| Holding brake | With brake |
| Temperature sensor | PT1000 |
| Protection class | IP54 |
| Motor flange | 84x84mm |

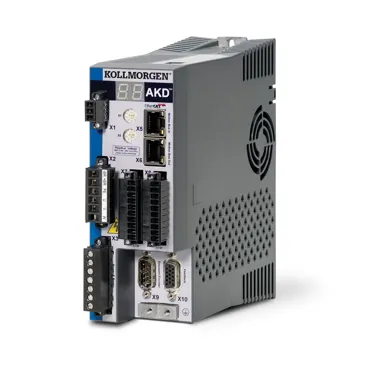

Accessories
