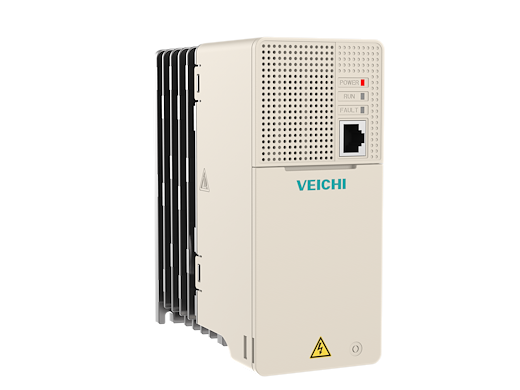

AC01-T3-1R5G-B-E, Veichi compact variable speed drive, 1.5kW, 3.7A, for synchronous (SMPM) and asynchronous motors
CHF 162.62 excl.
AC01 compact drive with 1.5kW. Used for Synchronous (SMPM) or asynchronous motors
Available: Delivery time approx. 7 weeks
AC01 compact VFD:
TThe AC01 is a miniaturised frequency converter from Veichi, designed for low-power speed control applications. It enables simple speed control and start-stop control on-site, including RS485 communication or a keypad extension.
- Housing 1
- Dimensions 65x150x130mm Mains connection 3x400VAC, 50Hz
- Standard (G-type):
- Rated motor power 1.5kW
- Output current 3.7Arms
- Peak current 3s/200%, 10s/180%, 89s/150%
- Nominal switching frequency 4kHz
- Output frequency limited to 0..599Hz
- Synchronous (SMPM) or asynchronous motors
- 3x Digitale Input
- 2x Analogue Input (1x 0..20mA, 1x 0-10V)
- 1x Digitale Output
- 1x Relais Output
- Designed as IP20 device
- With internal regen transistor
Configuration:
- USB-RS485-Converter or
- Operator with display and keypad, for configuration
Certifications: CE
| Item no. | 9000-0106 |
| Manufacturer | Veichi |
| Weight | 0.900 kg |
| Availability | from stock |
| Rated power | 1.5kW |
| Fieldbus | Stand-alone ModbusUDP |
| Device Version | AC01 - IO |
| Safety functions | - |
| Voltage | 3x400VAC, with regen transistor |
| Framesize | Housing 1, 65x150x130mm |
| Heat sink type | IP20, air-cooled, built-in variant |
